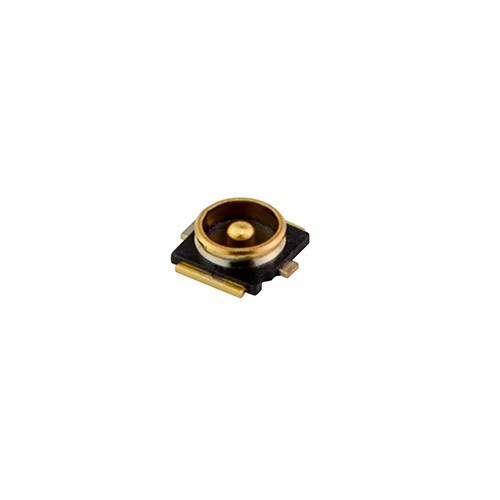

USS RF Connector IPEX IV

Part Number: USS RF IPEX IV
1.1 Frequency Range: 0~6GHz
1.2 Impedance: 50±5Ω
1.3 Insulation Resistance: 500MΩ Min
1.4 Dielectric Withstanding Voltage: 200V AC/60s
1.5 Inner Contact Resistance: 20mΩ Max
1.6 Outer Contact Resistance: 10mΩ Max
1.7 VSWR:
≤1.3 ( DC~3GHz )
≤1.4 ( 3~6GHz )
1.8 Mechanical Durability: 30 Cycles
1.9 Relative Humidity: 95%R.H.Max
2.0 Operating Temperature: -40°C ~ +85°C

EMAIL

Products Data & Appearance Dimensions




General Parameters:

Connector TypeMHF, UFL, USS RF Connector I-PEX  IV
PolarityStandard
GenderMale / Plug
GeometryRight Angle
Termination StyleSolderless
Application Type5G, WiFi, LTE, Bluetooth, GPS
Cable1.80 mm (30), 1.37 mm (30), 1.32 mm (32), 1.13 mm (32), 0.81 mm (36)
Impedance50 Ohms
GradeCommercial, Military, Space
FrequencyDC to 9 GHz
Dimension2.6 x 2.6 mm
RoHSYes
Operating Temperature-40 to 90 Degree C
VSWR1.3:1, 1.5:1, 1.9:1
NoteHeight :- 2.50 mm


Product selection:
